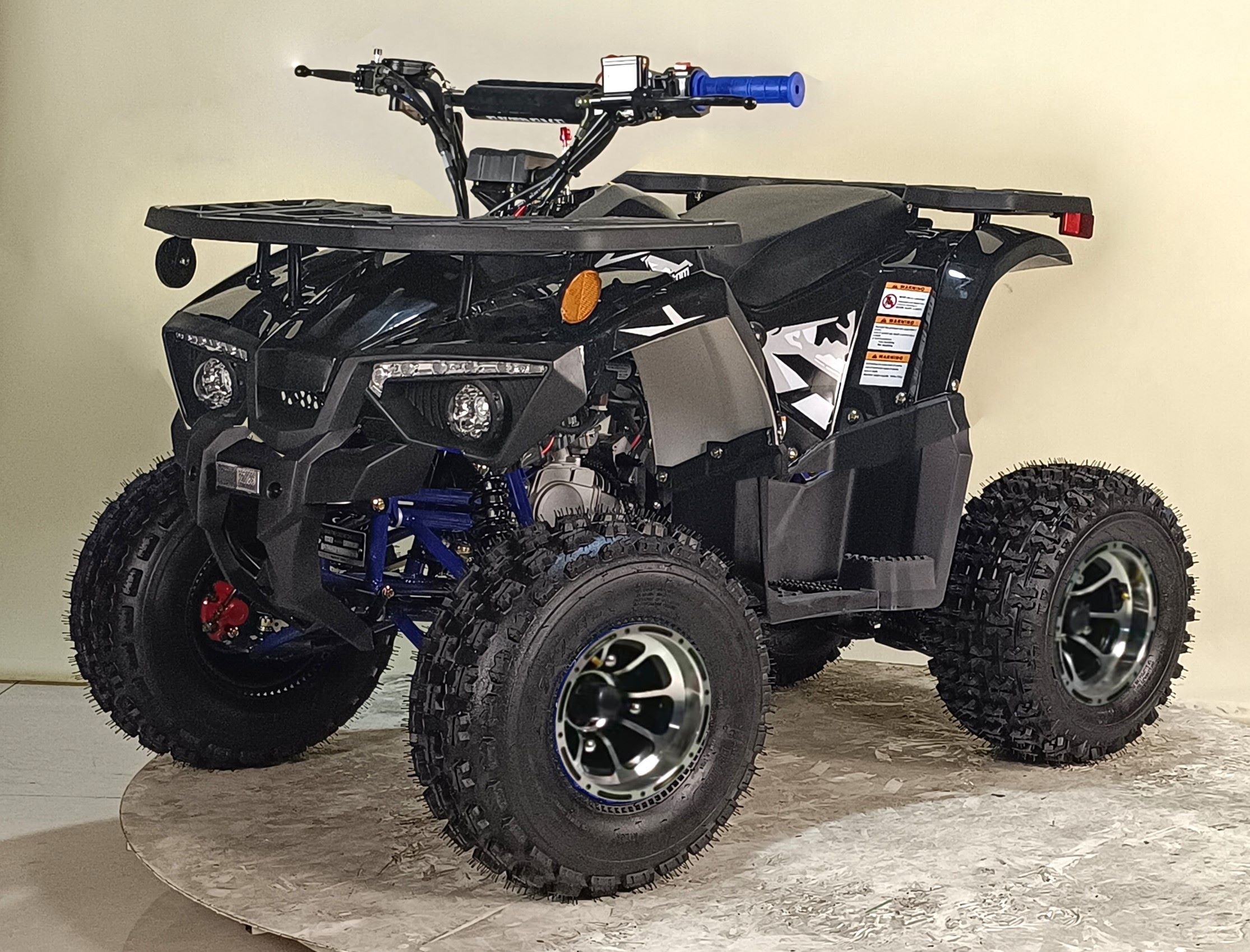

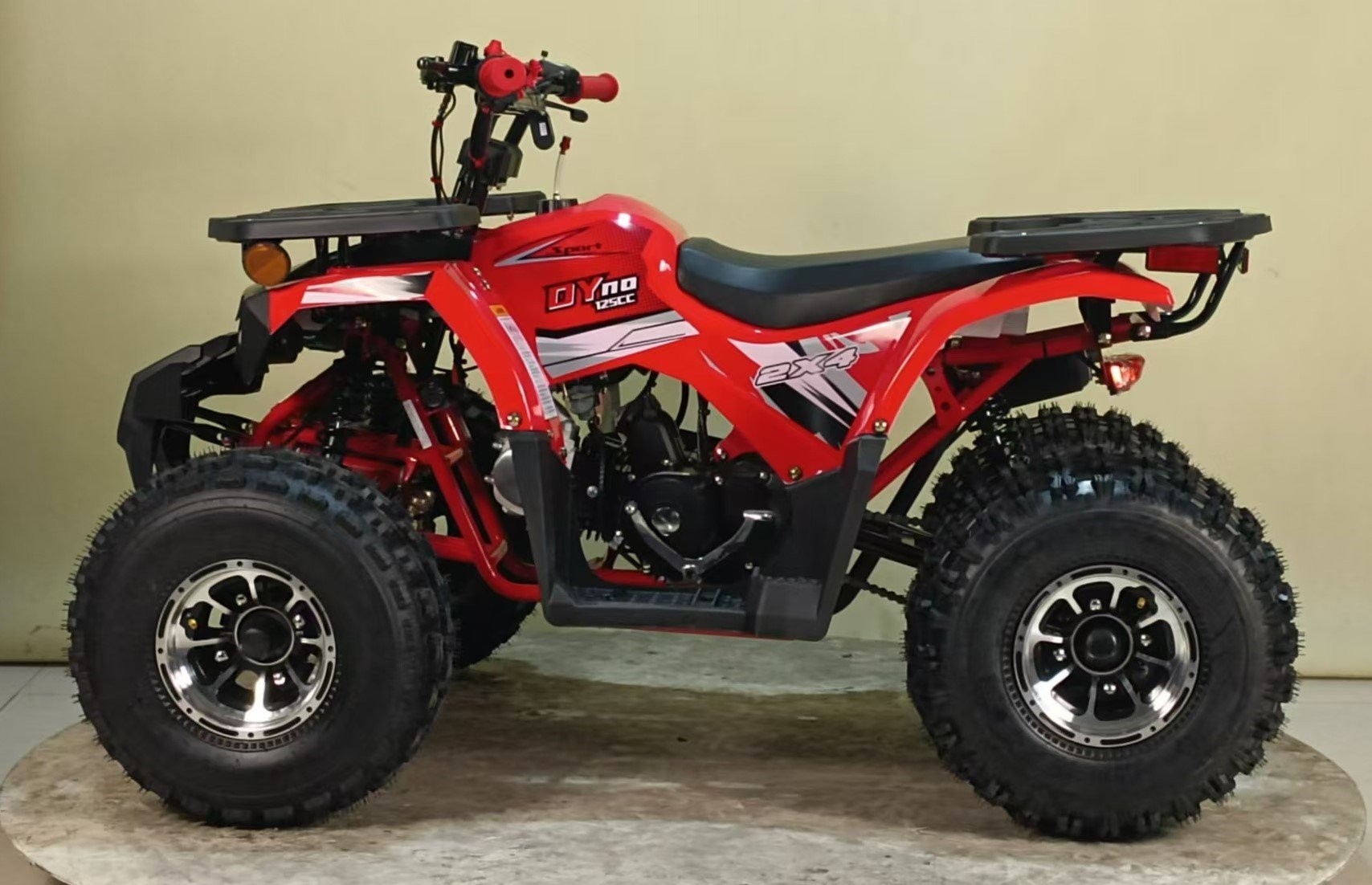

DYNO PHANTOM 125cc Youth ATV - Mid Size

$1,292.46 $1,899.00

Imagine having this great ATV for the kids!

A Mid Size unit with the bigger 19/18” tires on 8” rims, give this one a bigger and wider stance for the more experienced youth riders. Still fully automatic for ease of use, but with reverse, since they are ready for the next stage! And with all of the safety features that Right Way is known for, like throttle speed limiter, front hand and rear foot brakes, lights and reflectors, key fob control for parental stop, then you can feel better with your child having fun in the backyard or on the trails!

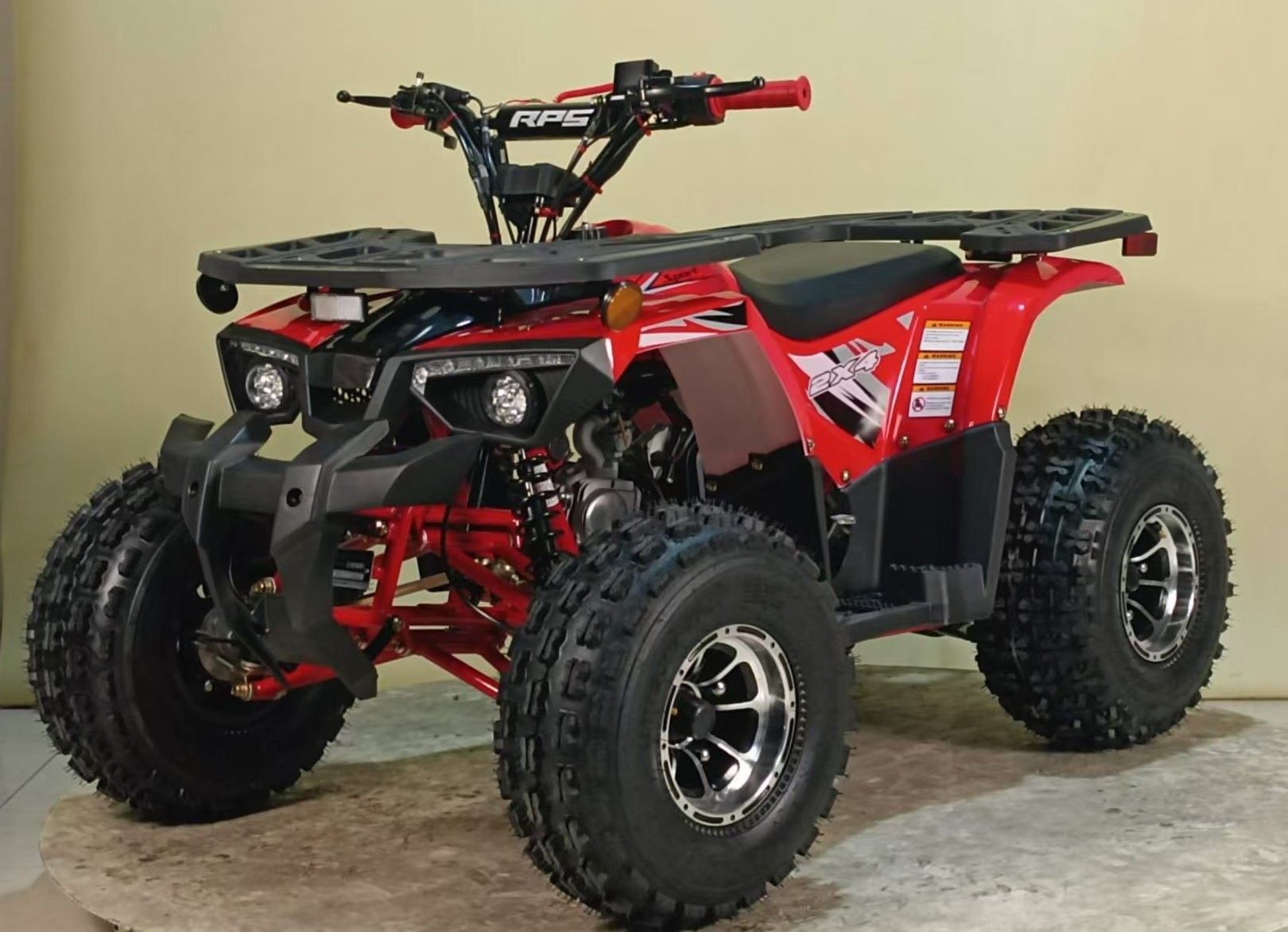

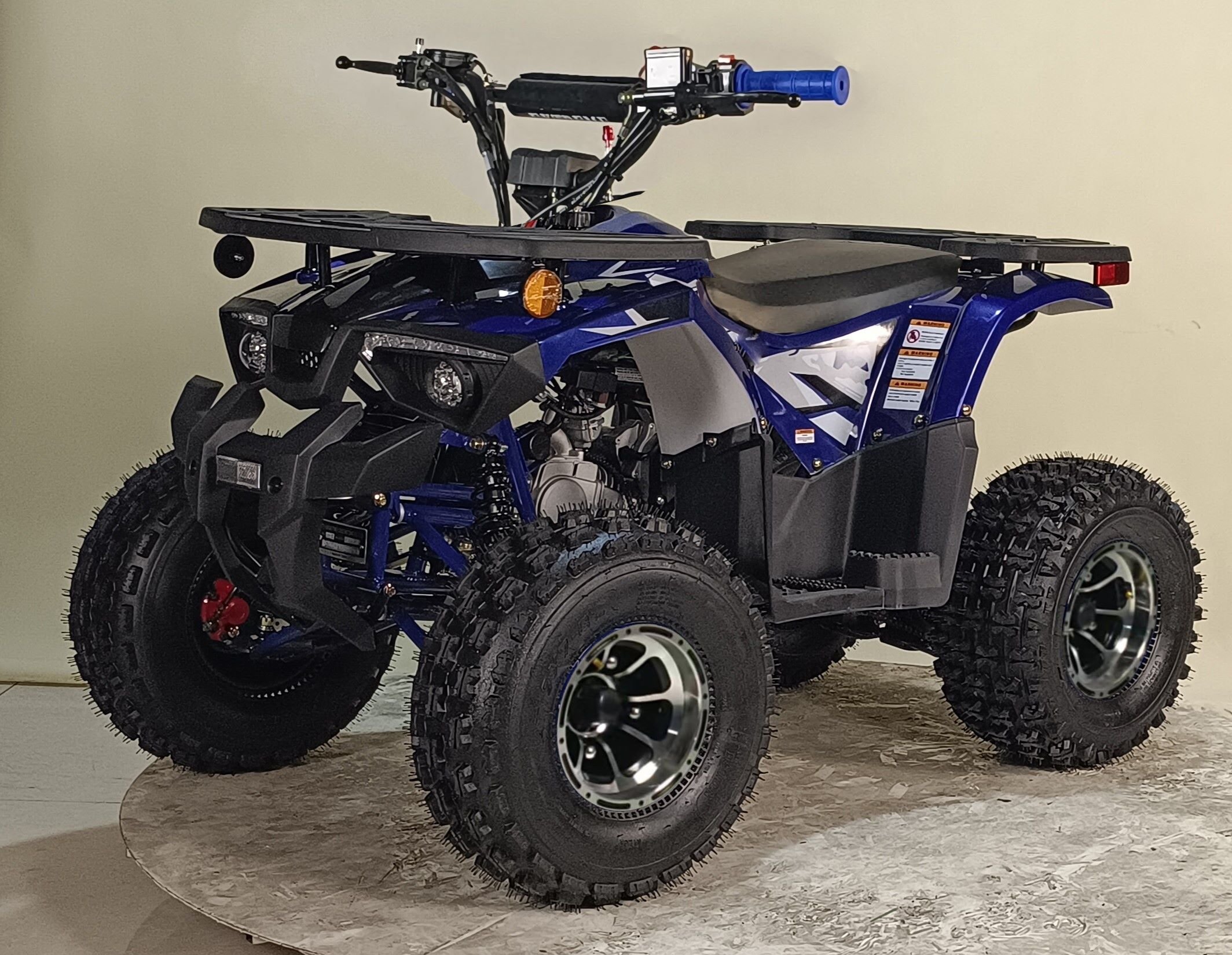

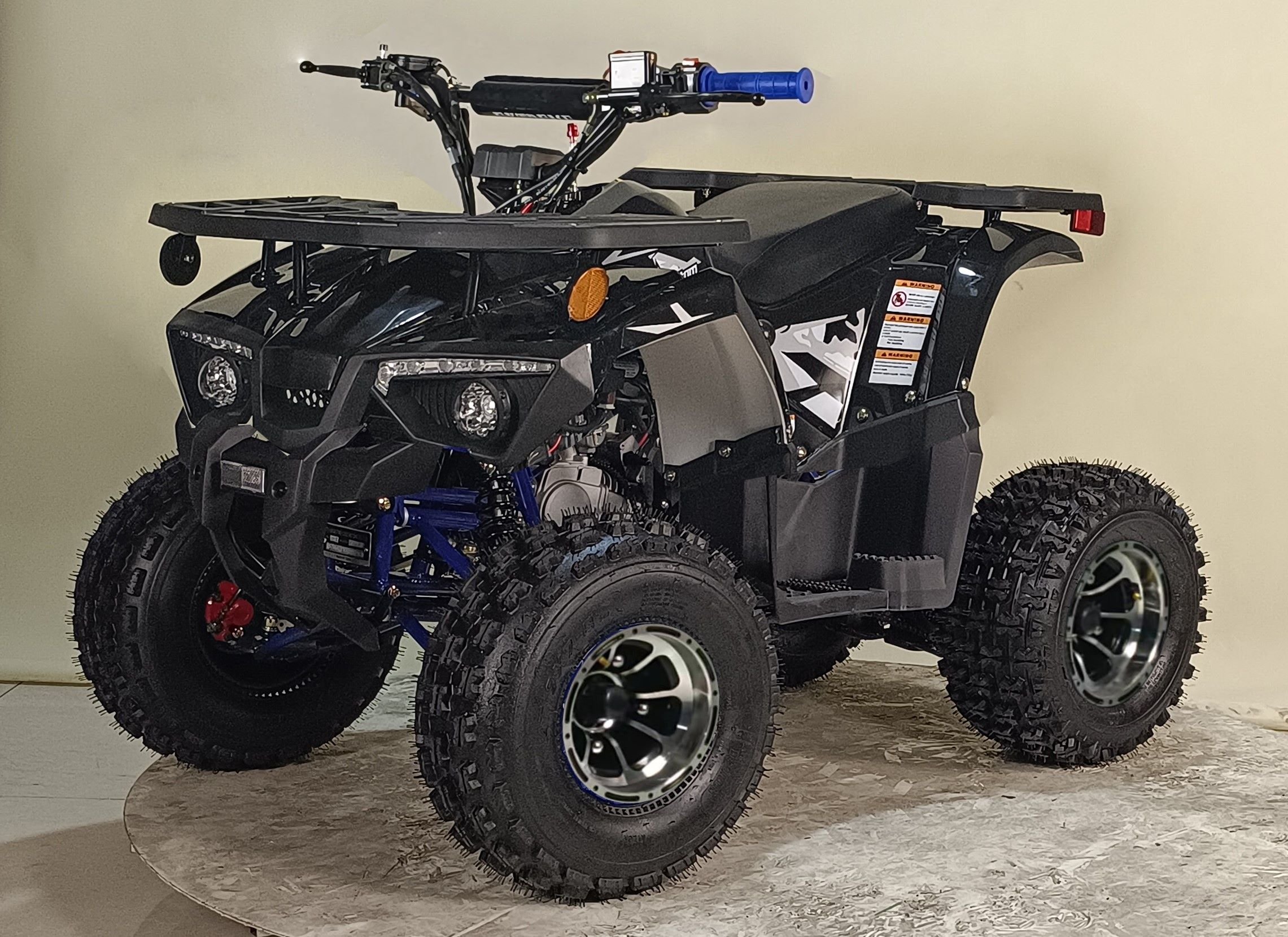

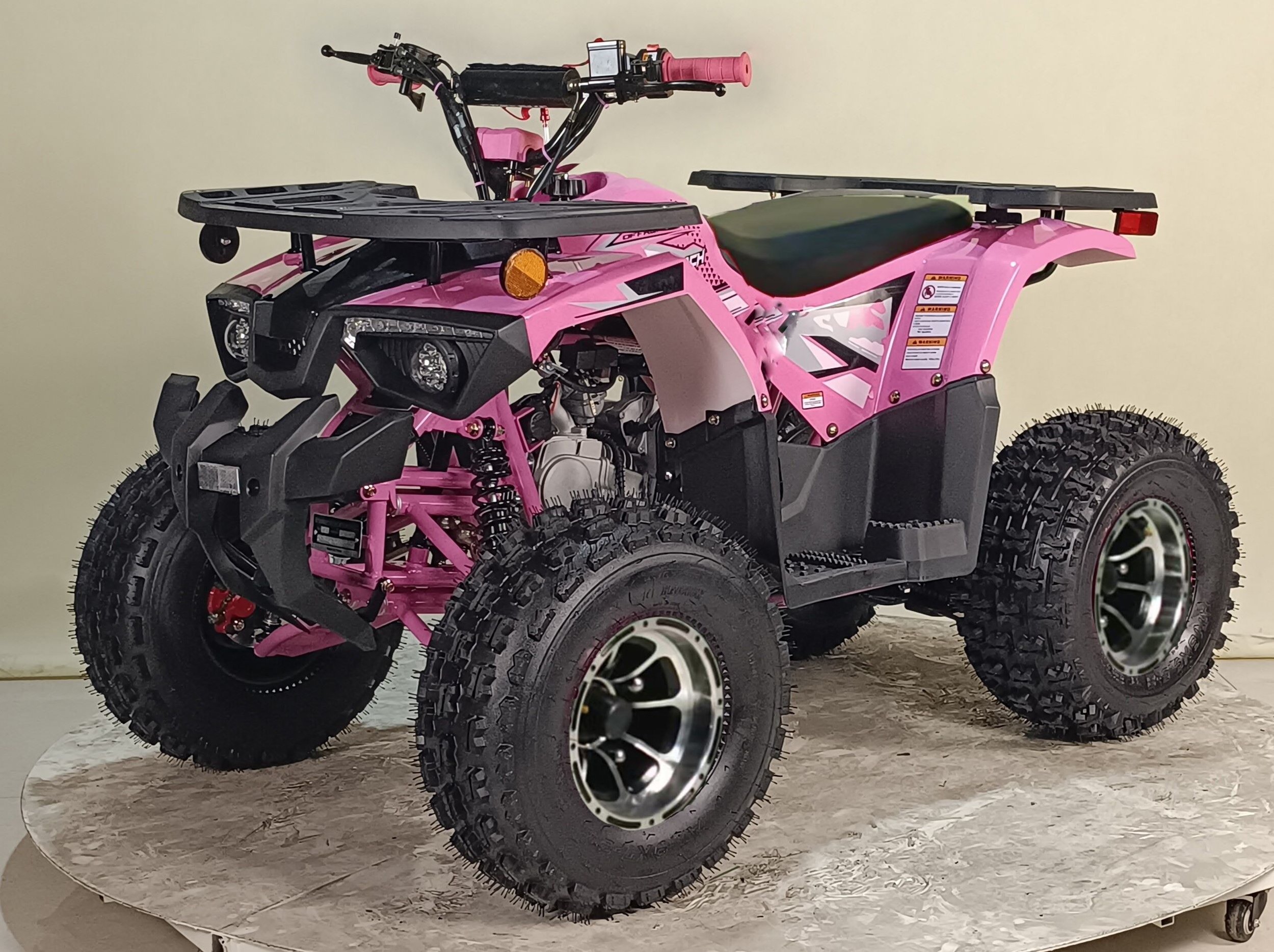

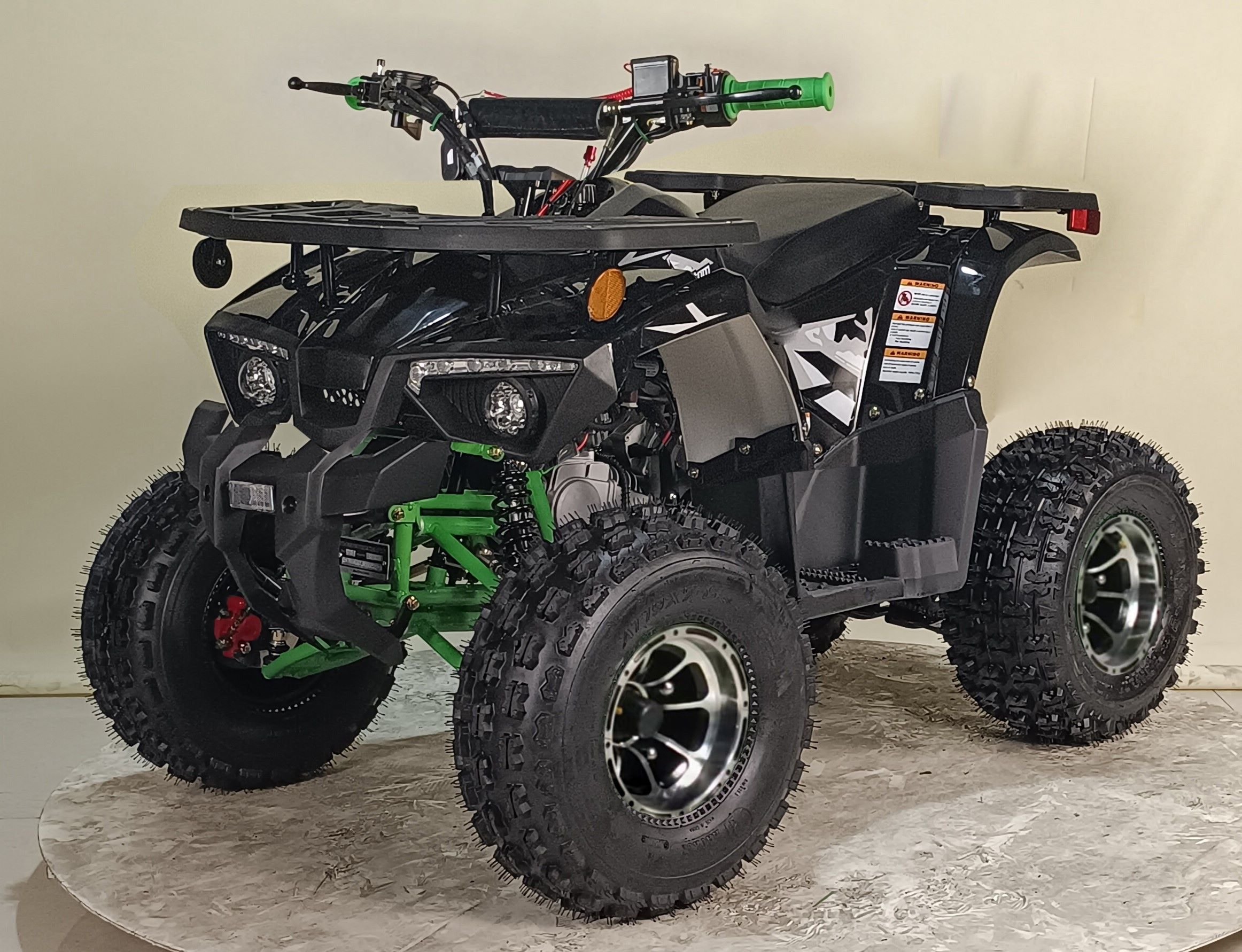

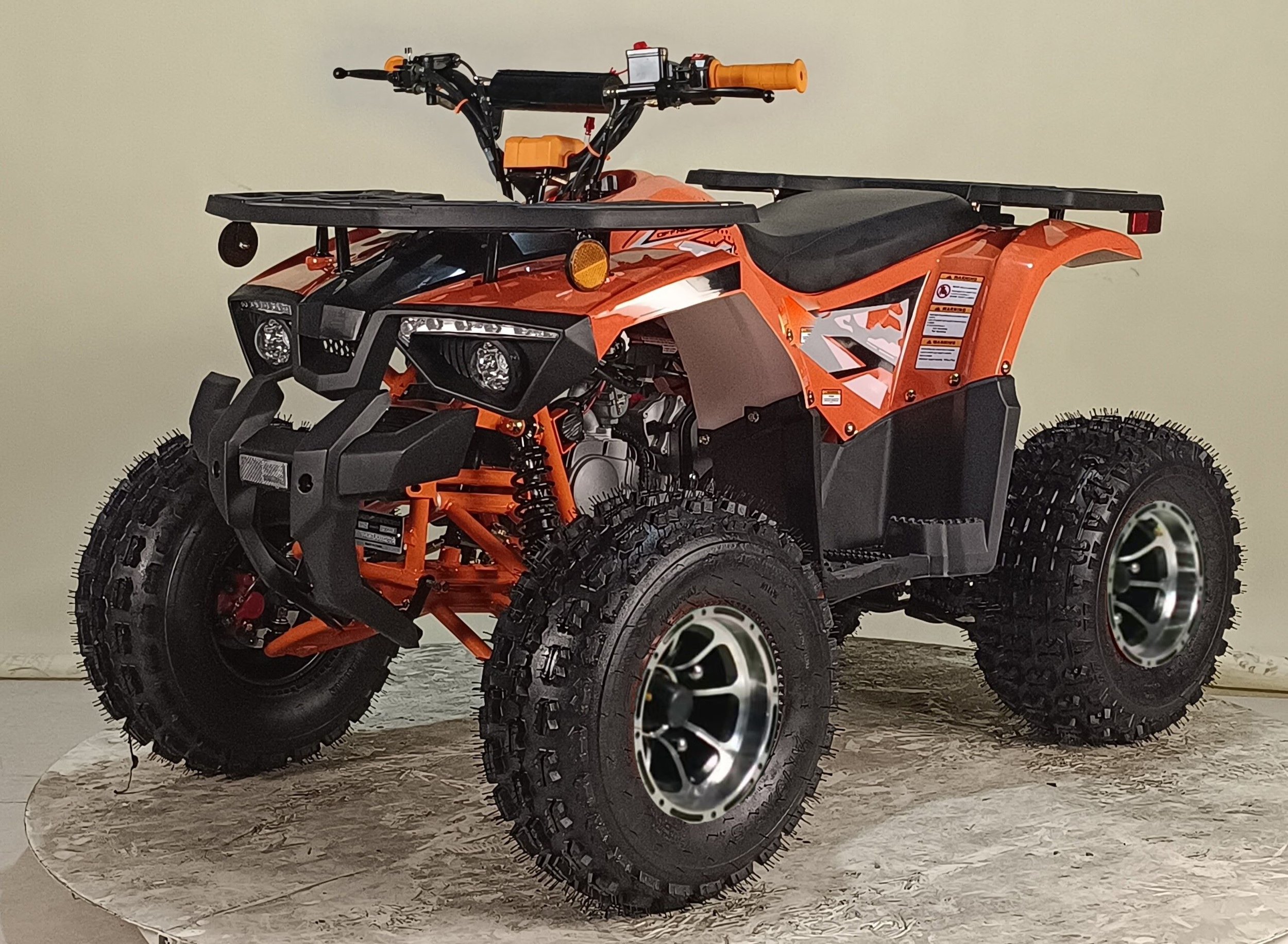

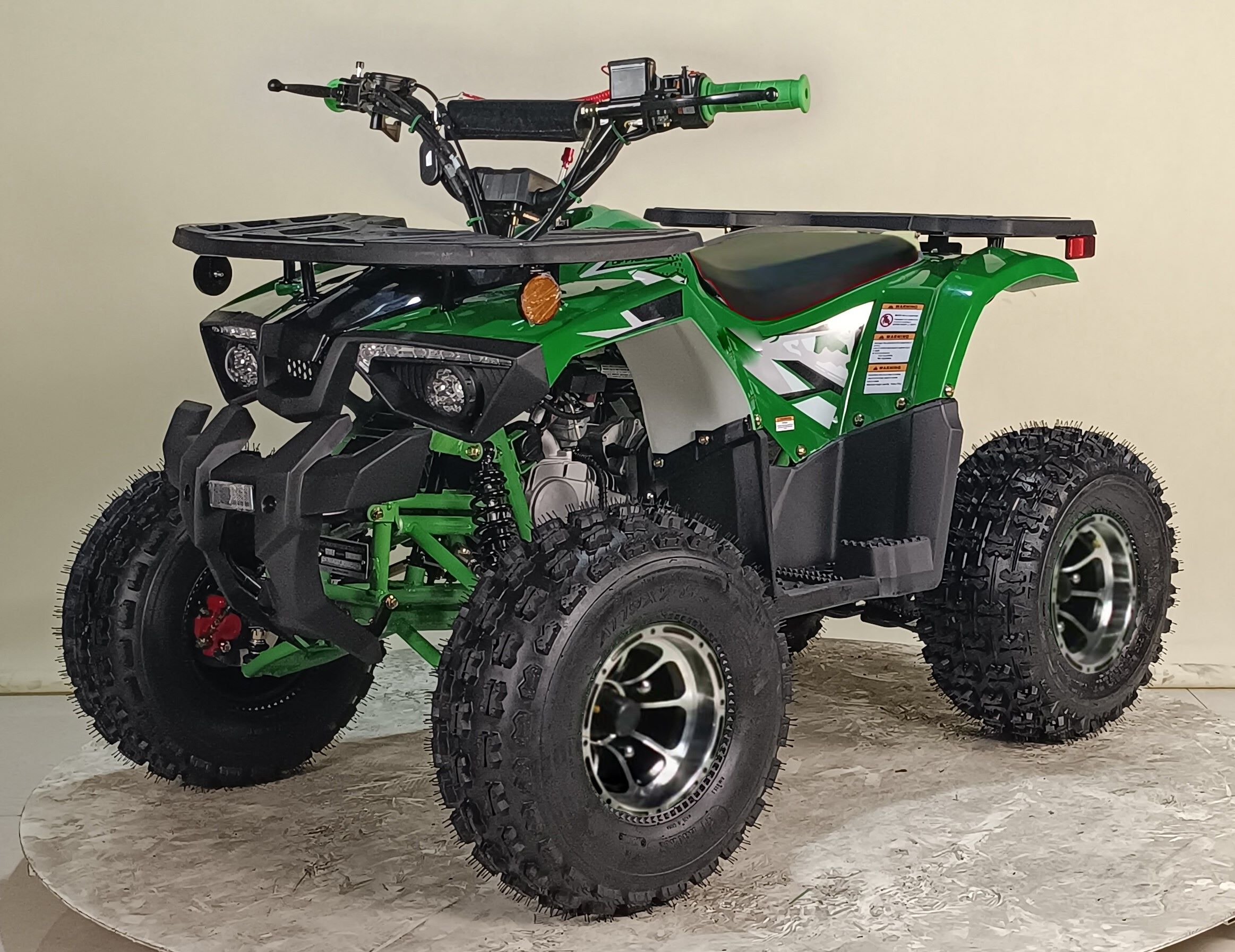

Color:

Imagine having this great ATV for the kids!

A Mid Size unit with the bigger 19/18” tires on 8” rims, give this one a bigger and wider stance for the more experienced youth riders. Still fully automatic for ease of use, but with reverse, since they are ready for the next stage! And with all of the safety features that Right Way is known for, like throttle speed limiter, front hand and rear foot brakes, lights and reflectors, key fob control for parental stop, then you can feel better with your child having fun in the backyard or on the trails!

SPECIFICATIONS

ENGINE

Type 125cc, single cylinder, air cooled, 4-stroke,

Bore x Stroke 2.063'' X2.19mm

Compression Ratio 9.1:1

Carburetor PZ20

Ignition CDI

Starting Time Electric start

Transmission R-N-F

Drive Train Chain Drive

Max. Torque 8.0N.m/5500r/min

Max. Power 5.3kw/7500r/min

CHASSIS

Suspension/Front Independent double swing arm

Suspension/Rear Single swing arm

Brakes/Front Drum

Brakes/Rear Hydraulic disc

Tires/Front-Rim 19x 7-8 radial/Alloy rim

Tires/Rear-Rim 18x9.5-8radial/Alloy rim

DIMENSIONS

L x W x H 59.84''X37''X38.58''

Seat Height 26.77''

Wheelbase 40.16''

Ground Clearance 5.32''

Front Wheel Track 29.92''

Rear Wheel Track 26.38''

Battery 12V/5Ah

Fuel Capacity 0.528gal

Net Weight 242.55lbs

Max. Load 165.38lbs

Package Size 57.8''X30.3''X25.6''

OTHER

Vehicle Top Speed Without Governor ≤29.83mph

Top Speed Per CPSC Requirement ≤15mph

Fuel Consumption 2.6L/100km

Starting Time ≤10s

Brake distance 30km/h≤6.5m

Remote Control Yes

Headlight LED
