SPECIFICATIONS
L×W×H: 61”X 39”X 42”
WHEELBASE: 40.5”±0.7”
FRONT WHEELBASE: 34”
REAR WHEELBASE: 30”
MINIMUM GROUND CLEARANCE: 4”± 0.5”
SEAT HEIGHT: 29”± 0.5”
RIDE HEIGHT: 8.6”
HANDLE HEIGHT: 39.7”
PACKING SIZE: 34”X 39”X 26”
FR. SUSPENSION TRAVEL: 2”
RR. SUSPENSION TRAVEL: 2.3”
MINIMUM TURNING CIRCLE DIAMETER: 149.6”
TURNING ANGLE: <45°
SIDESLIP: <5m/km
MAX LOADING: 150LBS
NET WEIGHT: 260LBS
G. W.: 285LBS

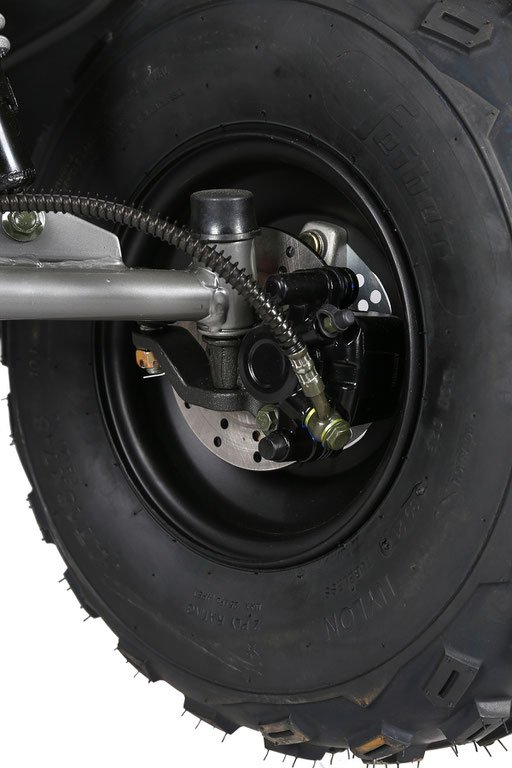

F&R BRAKE: FR. & RE. DISC BRAKE
F&R BRAKE OPERATION TYPE: FR. & RE. HAND BREAK
FR./RR. RIM: 8INCH
FR./RR. TYRE: 18*7-8/18*9-8
FR./RR. TYRE CAPACITY: 9 PSI
ENGINE TYPE: 125CC, AIR COOLE,. 4 STROKE, AUTOMATIC WITH REVERSE
BRORE×STROKE: 2.1”× 2.1”
ENGINE CAPACITY: 123.67ML
COMPRESSION RATIO: 9.0:1
MAX.POWER: 6.3（1±10%）〕/〔7500（1±5%）〕
MAX.TORQUE:〔8.8（1±10%）〕/〔5500（1±5%）〕
BATTERY: 12V/5AH
TANK CAPACITY: 6.5L

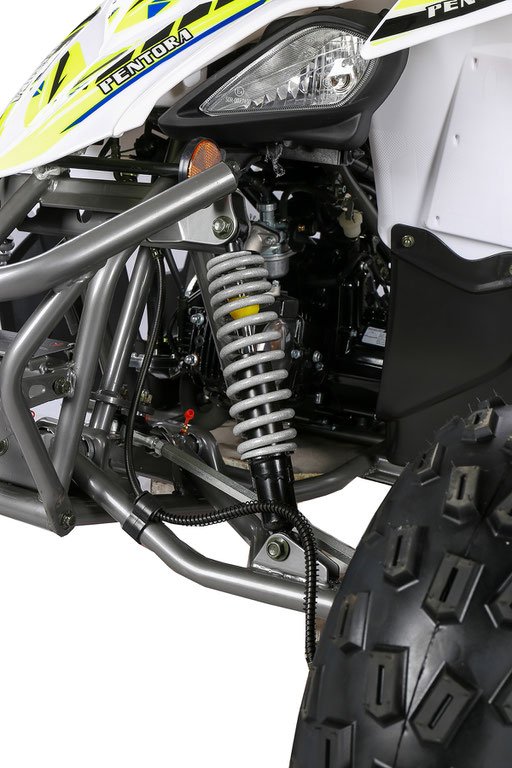

FR./RR. SUSPENSION: OIL DAMPER
FR./RR. SUSPENSION LENGTH: 11”/13.5”
