Mid XRX+ Specifications

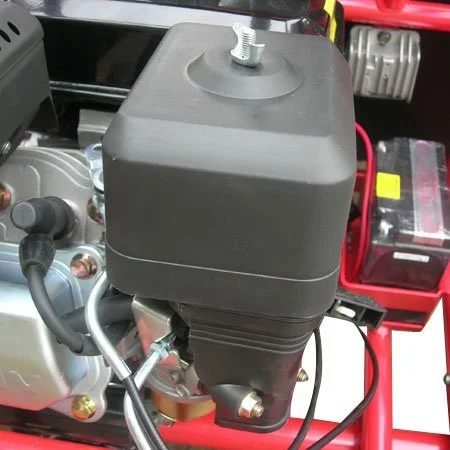

Engine Information
• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 212cc
• Max HP: 7hp/3600rpm
• Max torque: 12.5N·m/2500 r/min
• Bore x stroke: ø70x55
• Max speed: 31mph
• Climbing ability: 12 degrees
• Ignition: C.D.I

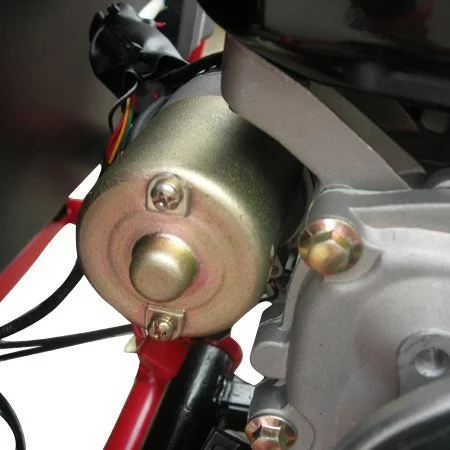

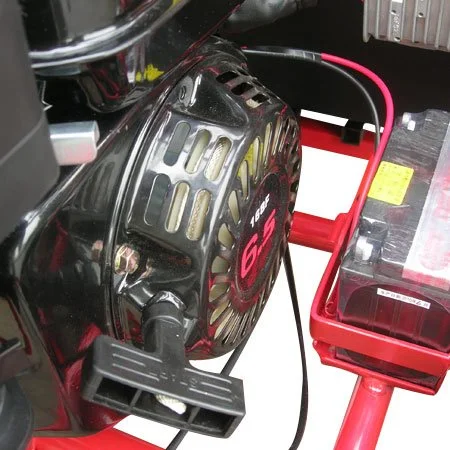

• Starting system: Electric / Pull start backup
• Battery: 12V 9Ah
• Carburetor brand: JF (RX)
• Engine oil: SG15W-40
General Information

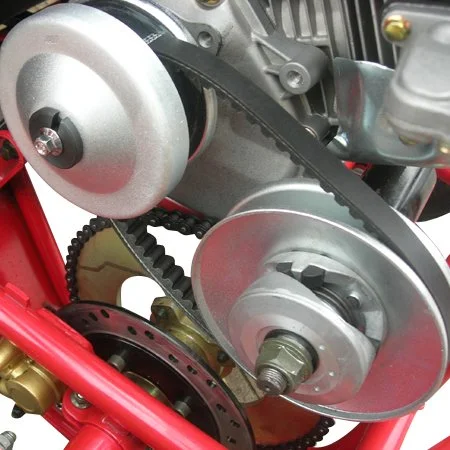

• Clutch: Automatic CVT
• Driveline / Driving wheel: Chain / Dual wheel drive

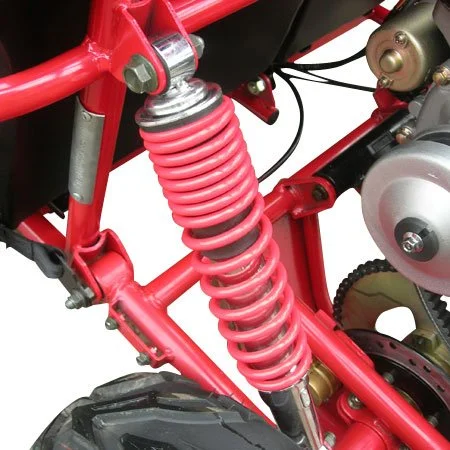

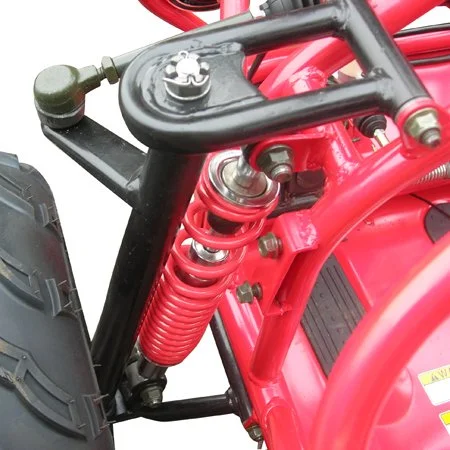

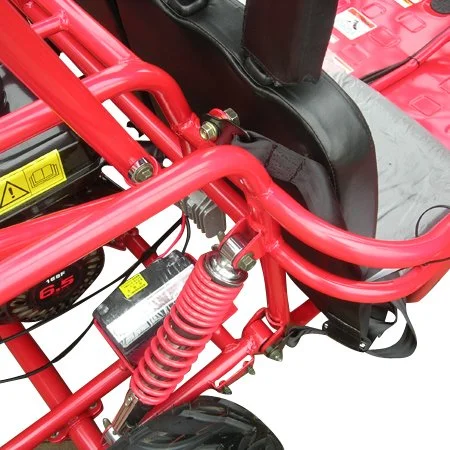

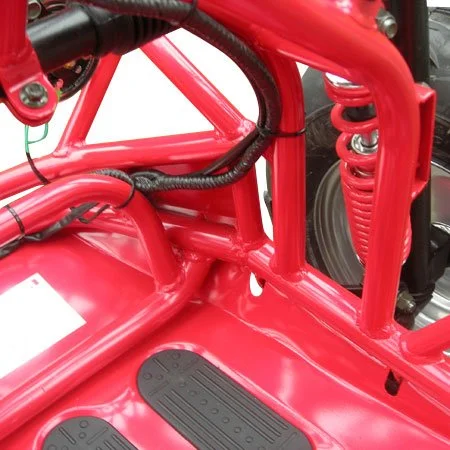

• Suspension, F / R: Double A-arm / Double Oil Damped Shock

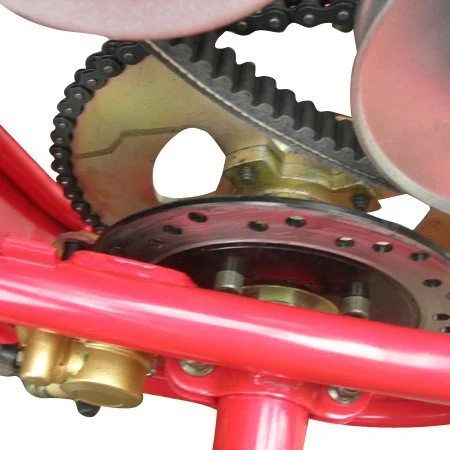

• Brakes, Rear Hydraulic brake, Disc

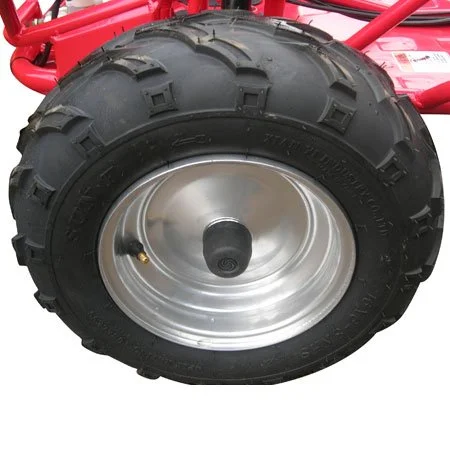

• Tires, F / R: 16x6-8 / 16x7-8
• Fuel capacity: 1 gal
• Weight, G.W. / N.W.: 386 / 330 lbs
• Max load: 400 lbs
Dimension Information
• Wheelbase: 48.4 inches
• OA L x W x H: 67x43.3x51.2 inches
• Height to seat: 10.2 inches
• Min ground clearance: 2.8 inches
• Pedal to seat back distance: 34 - 39 inches
Mid XRX/R+ - Key features:
1) Live Axle
2) Two-wheel Drive
3) Electric Start w/Pull Start Back Up
4) LED Headlight

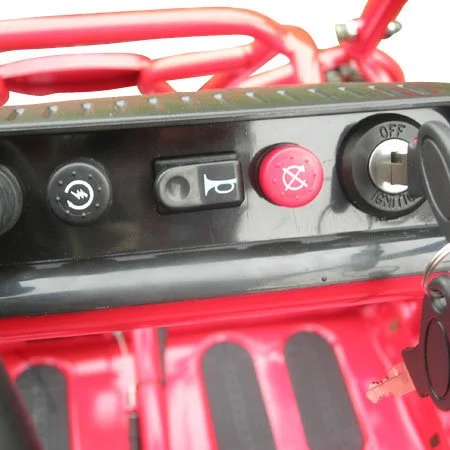

5) Remote Start/Kill

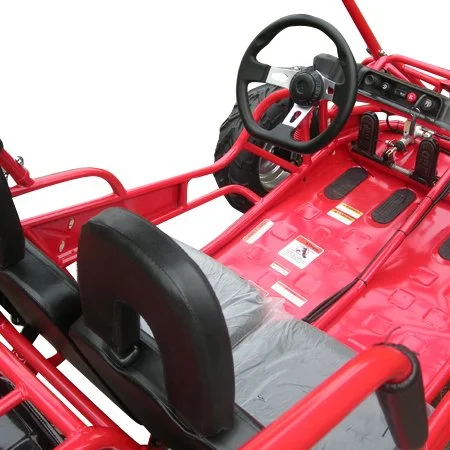

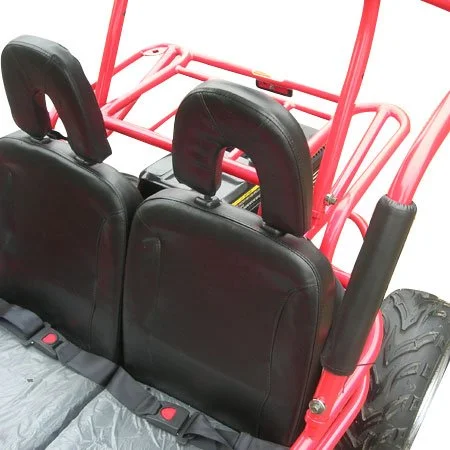

6) Adjustable Sports Seat

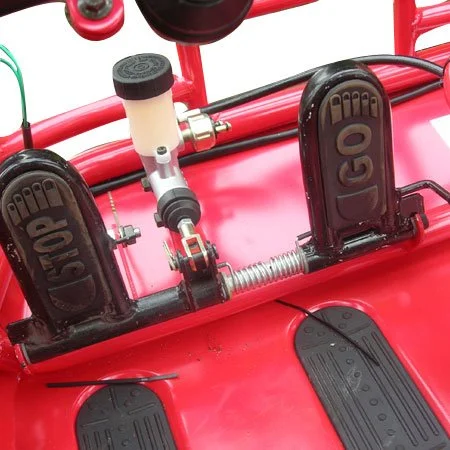

7) Adjustable Pedal
8) Five Point Safety Seatbelt
9) Speed Governor

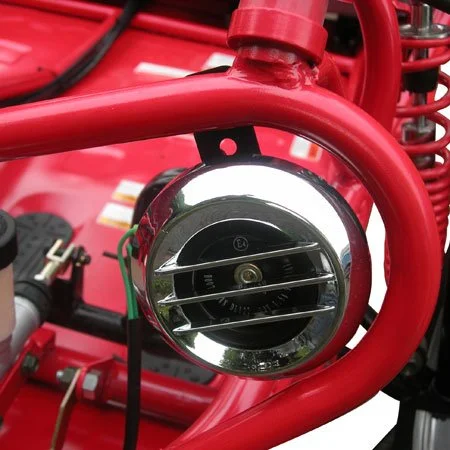

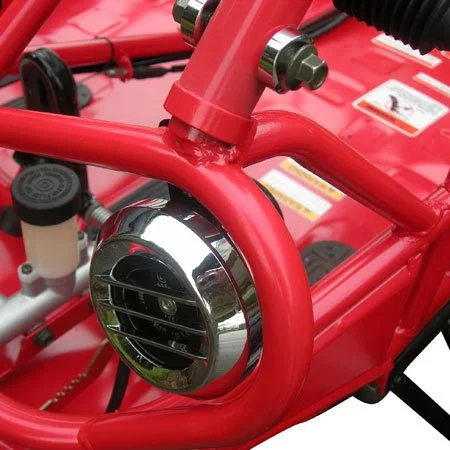

10) Horn
