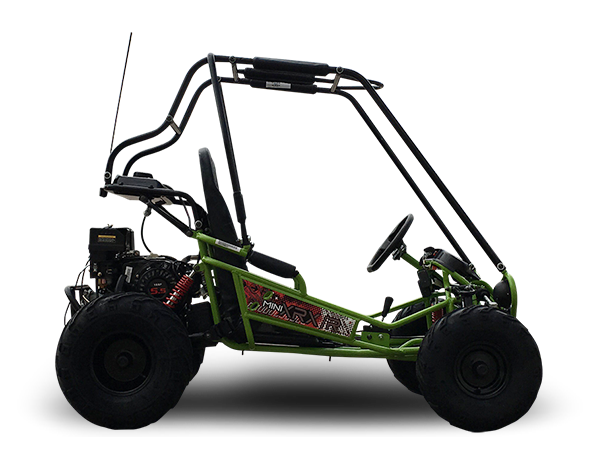

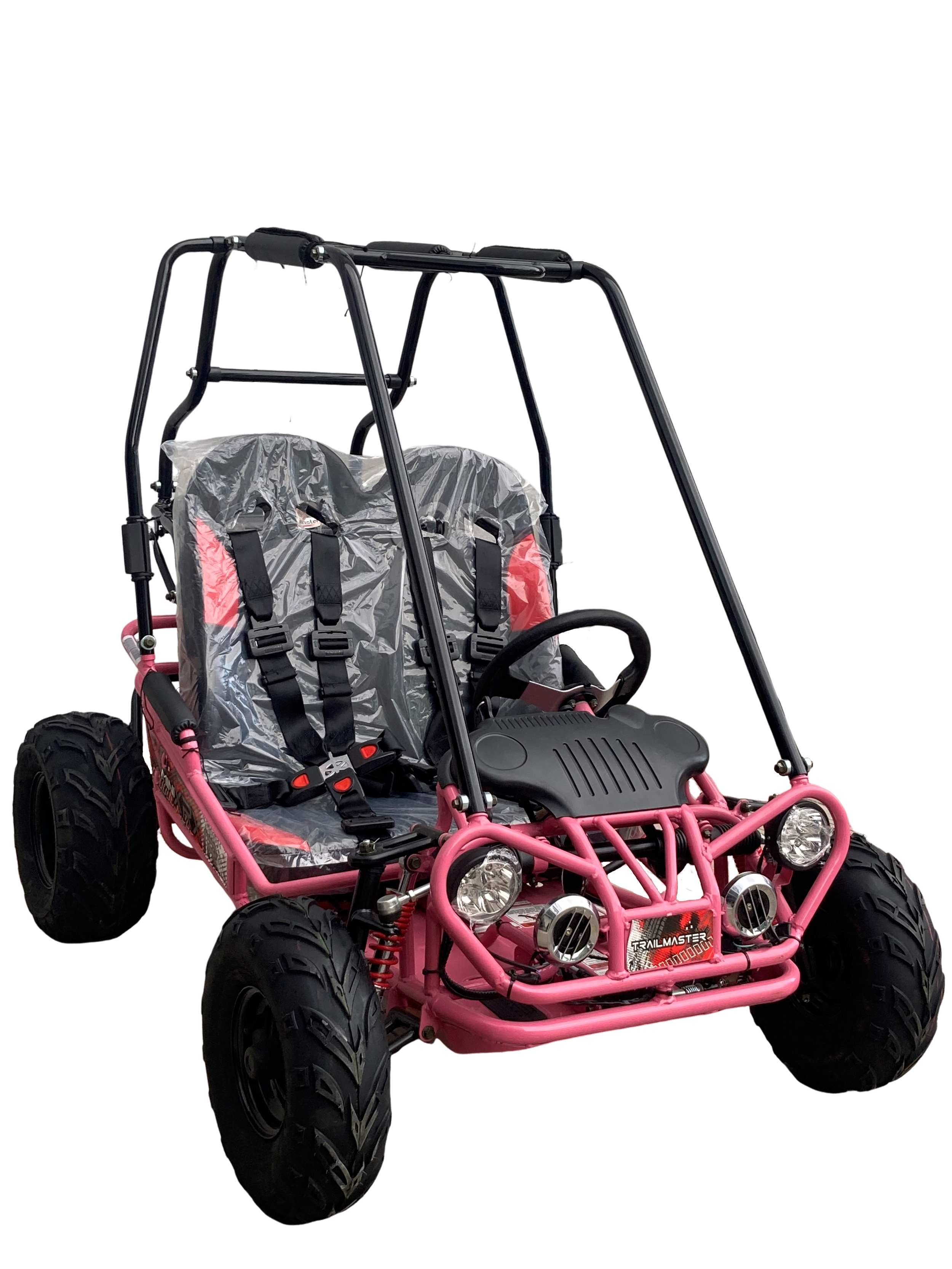

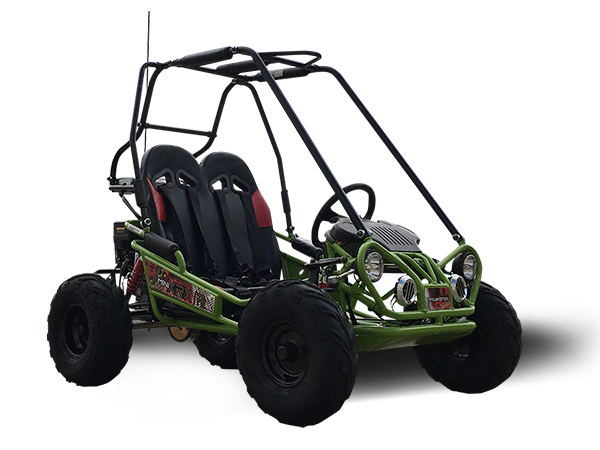

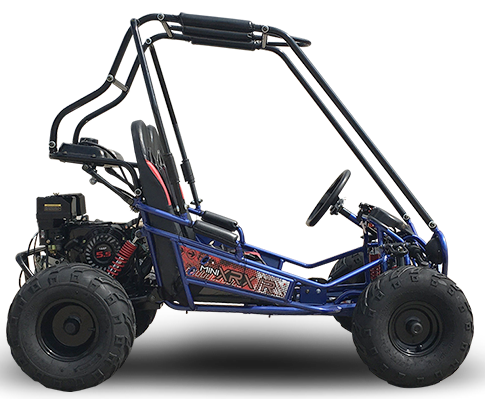

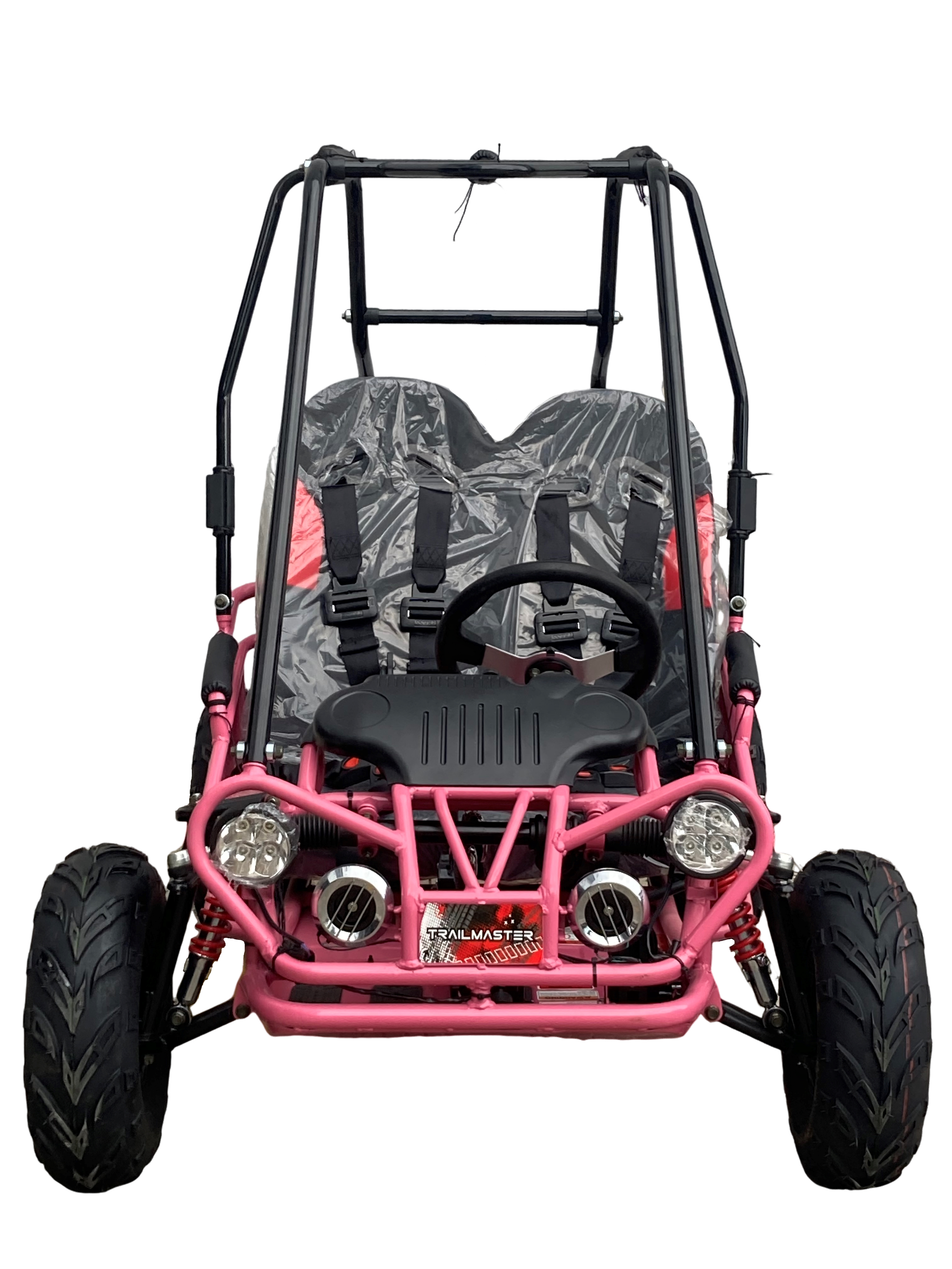

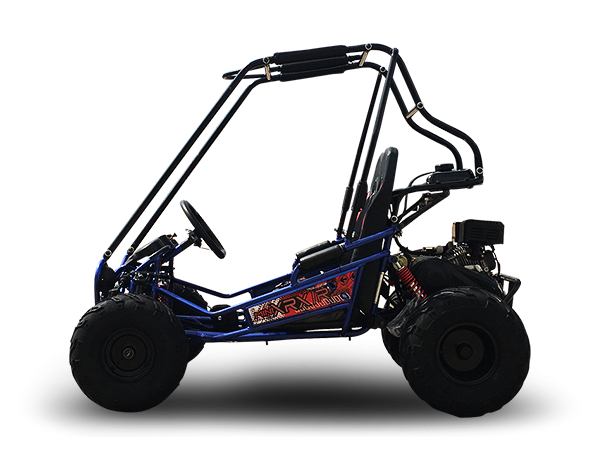

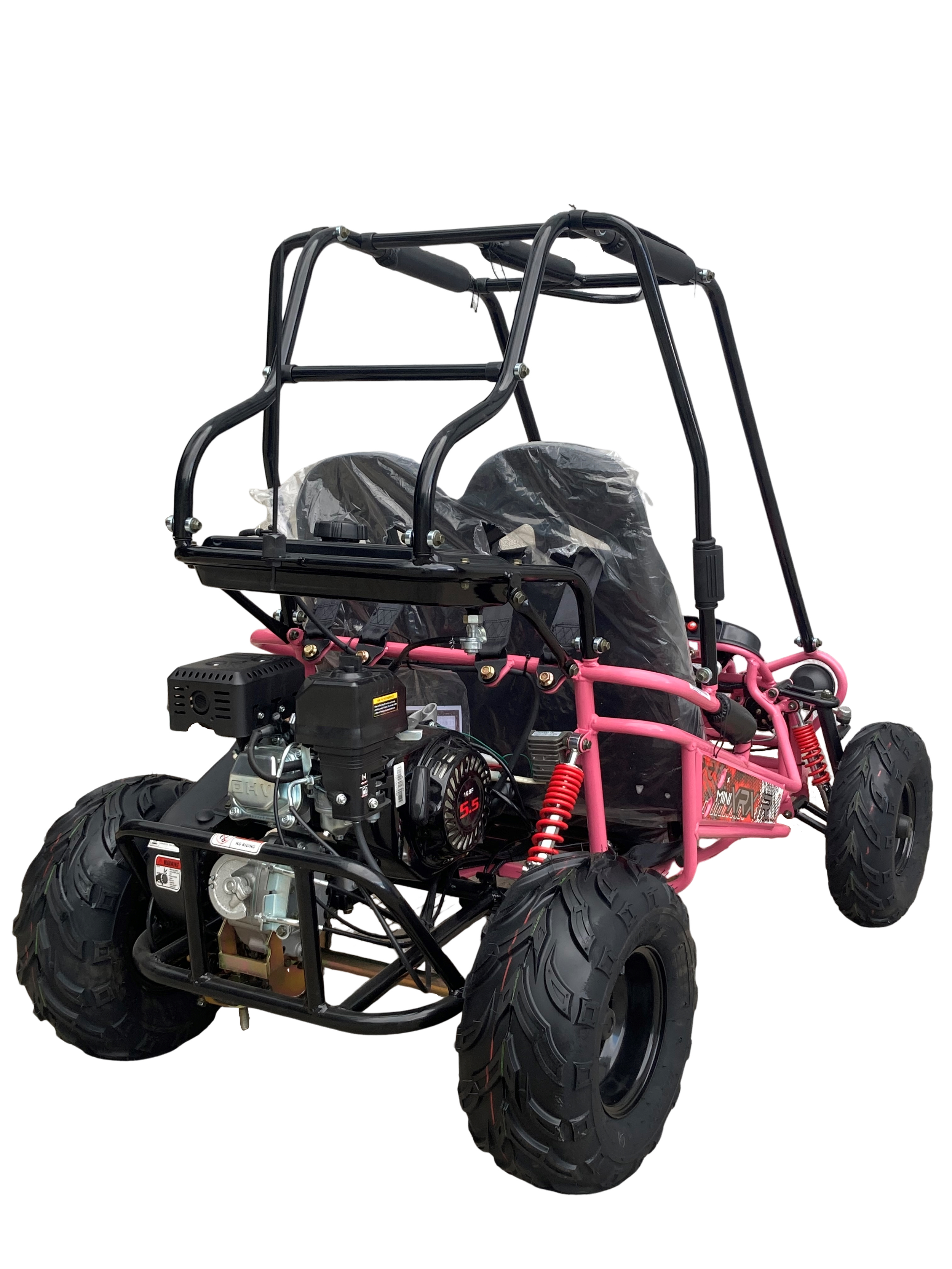

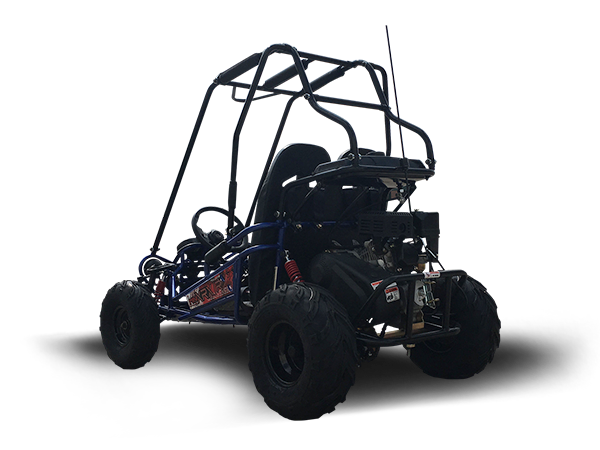

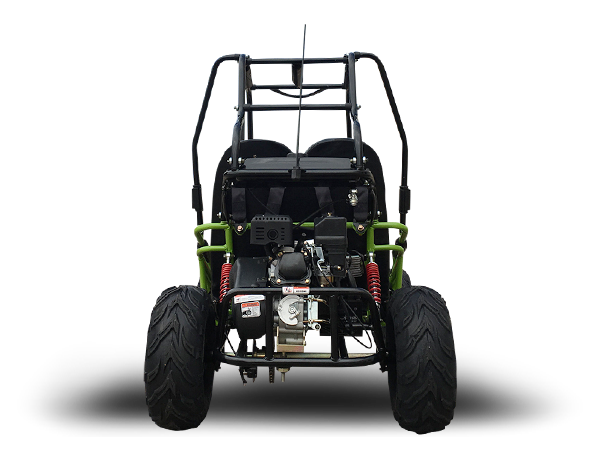

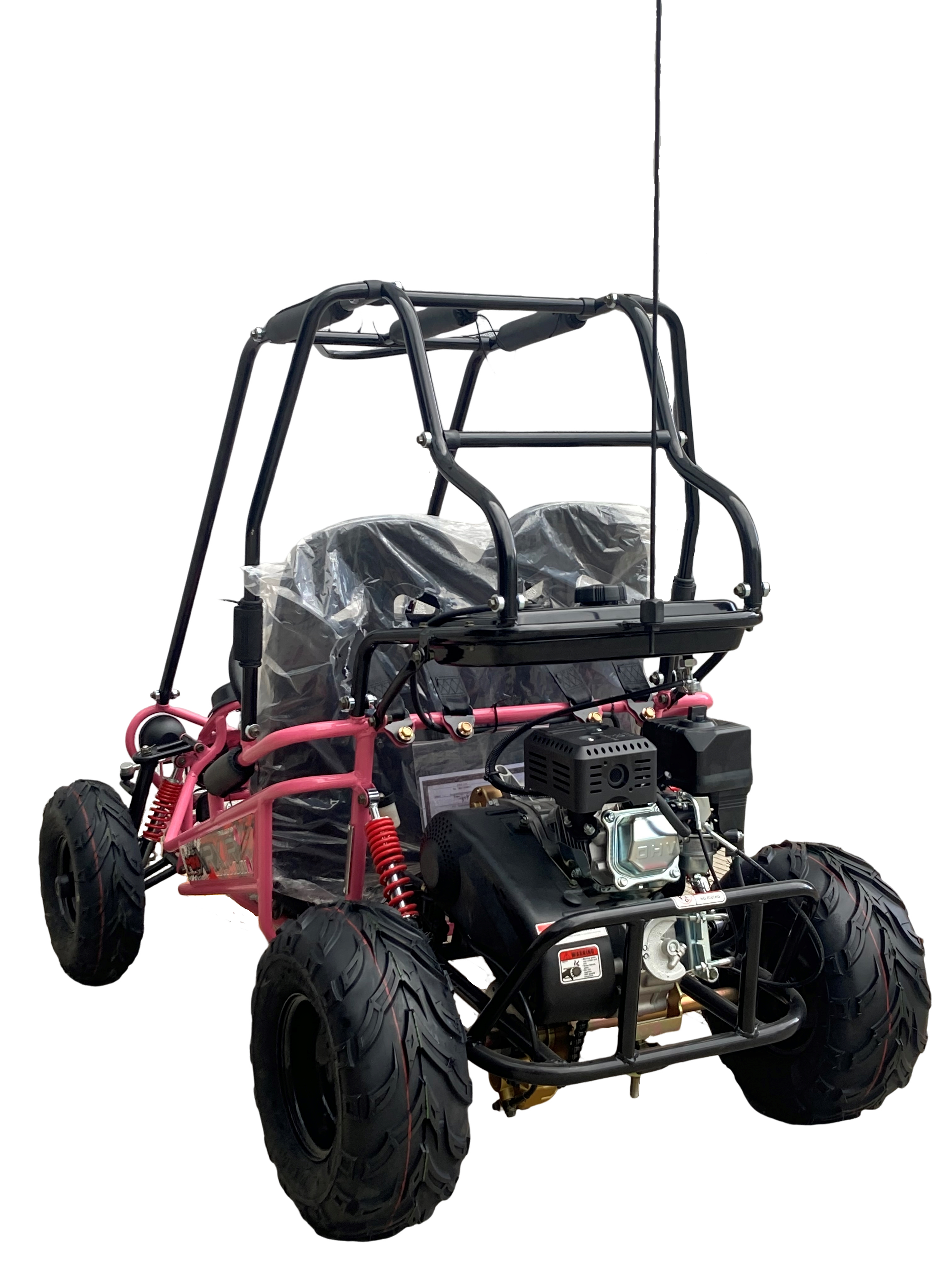

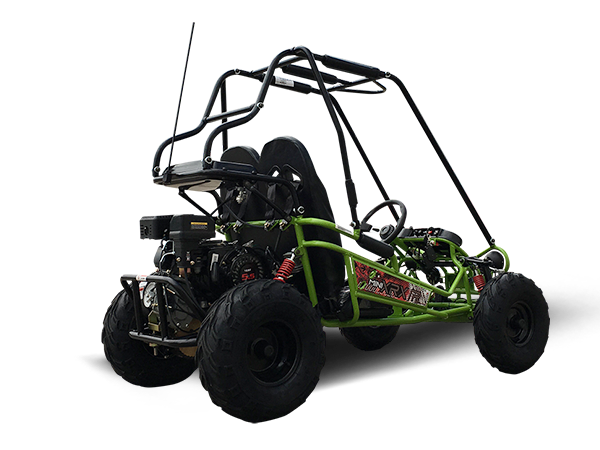

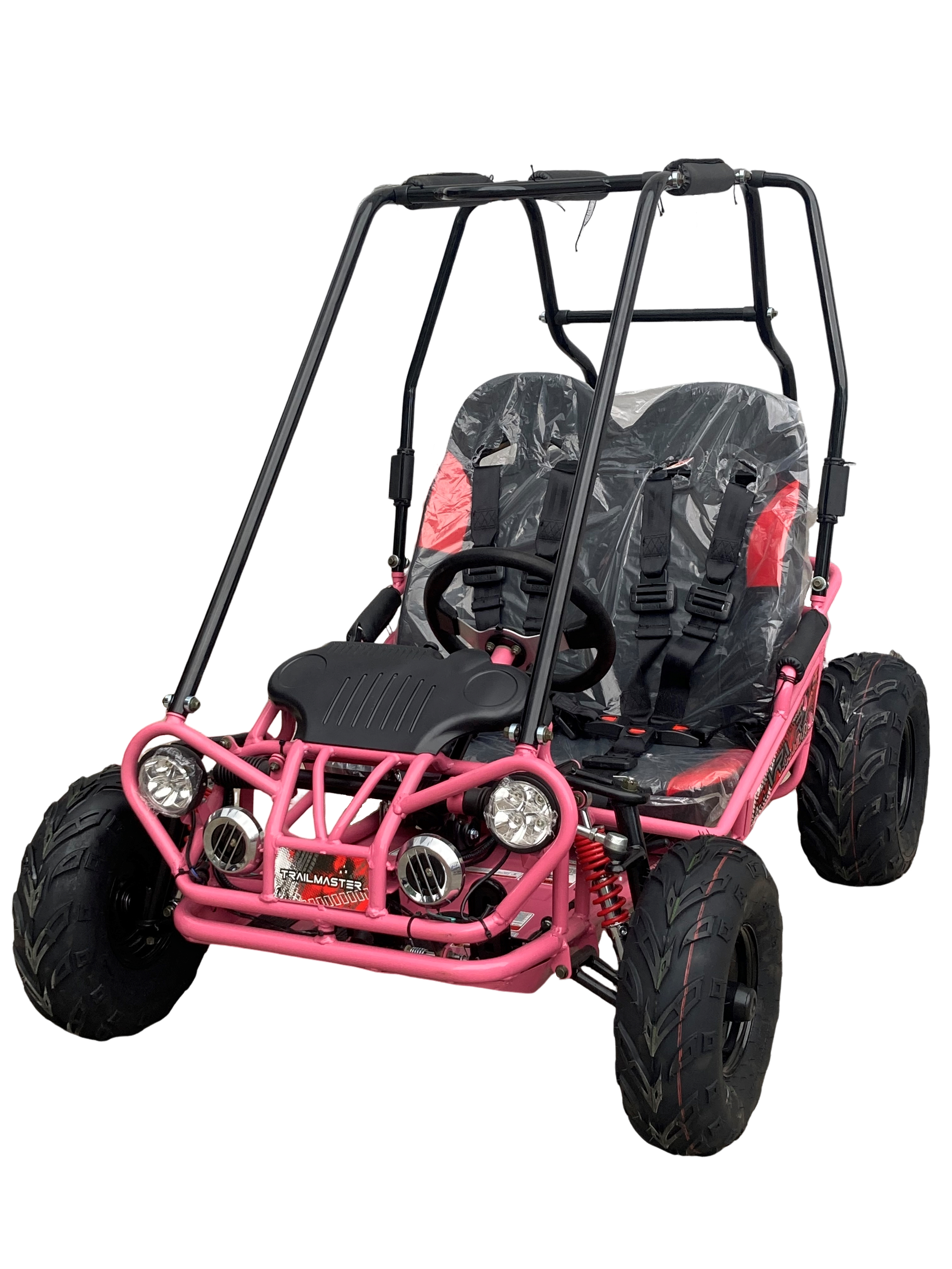

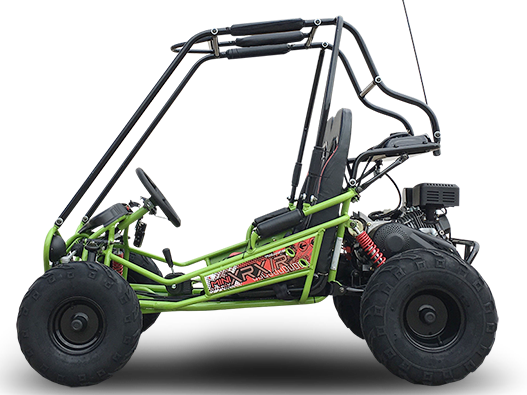

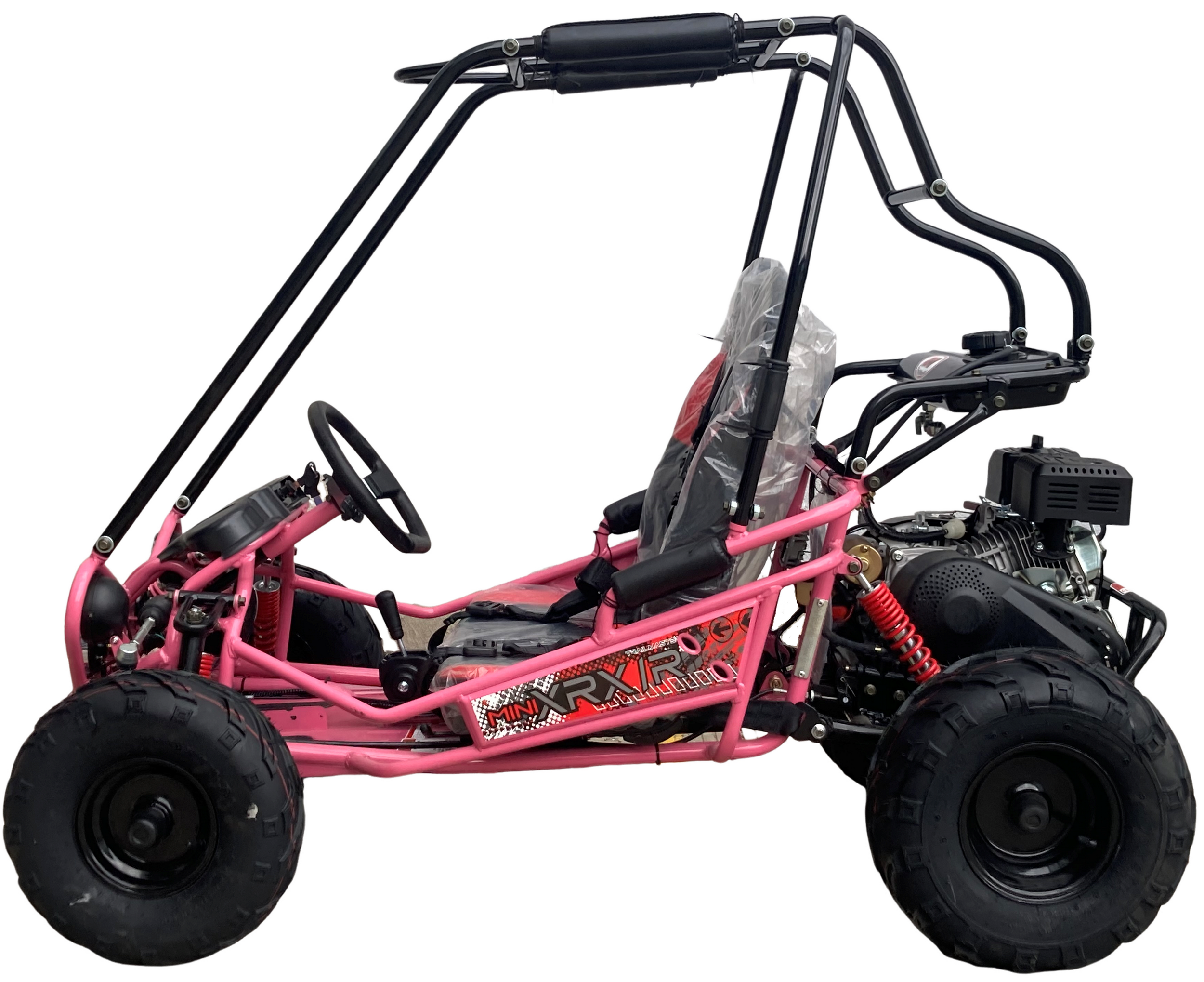

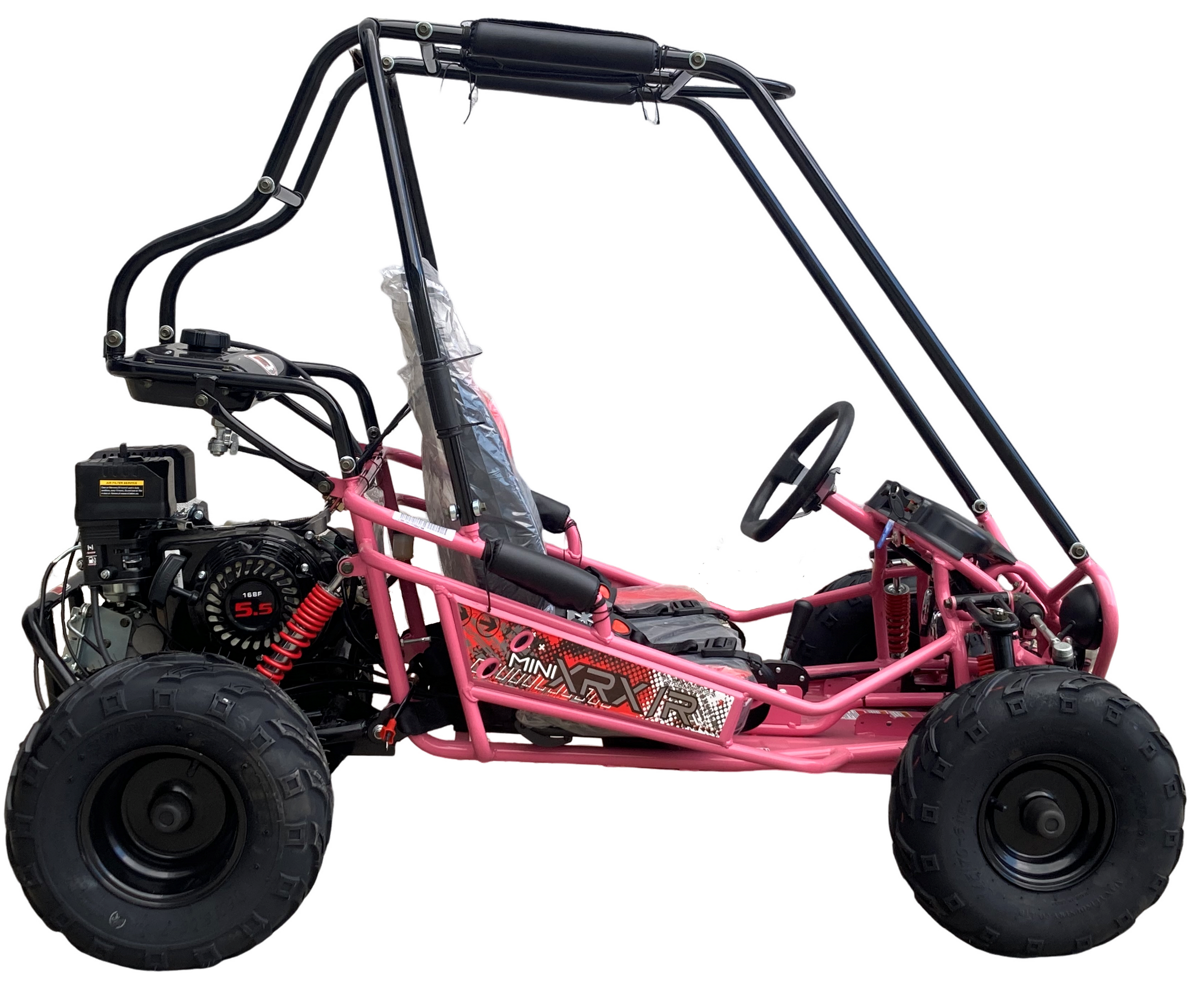

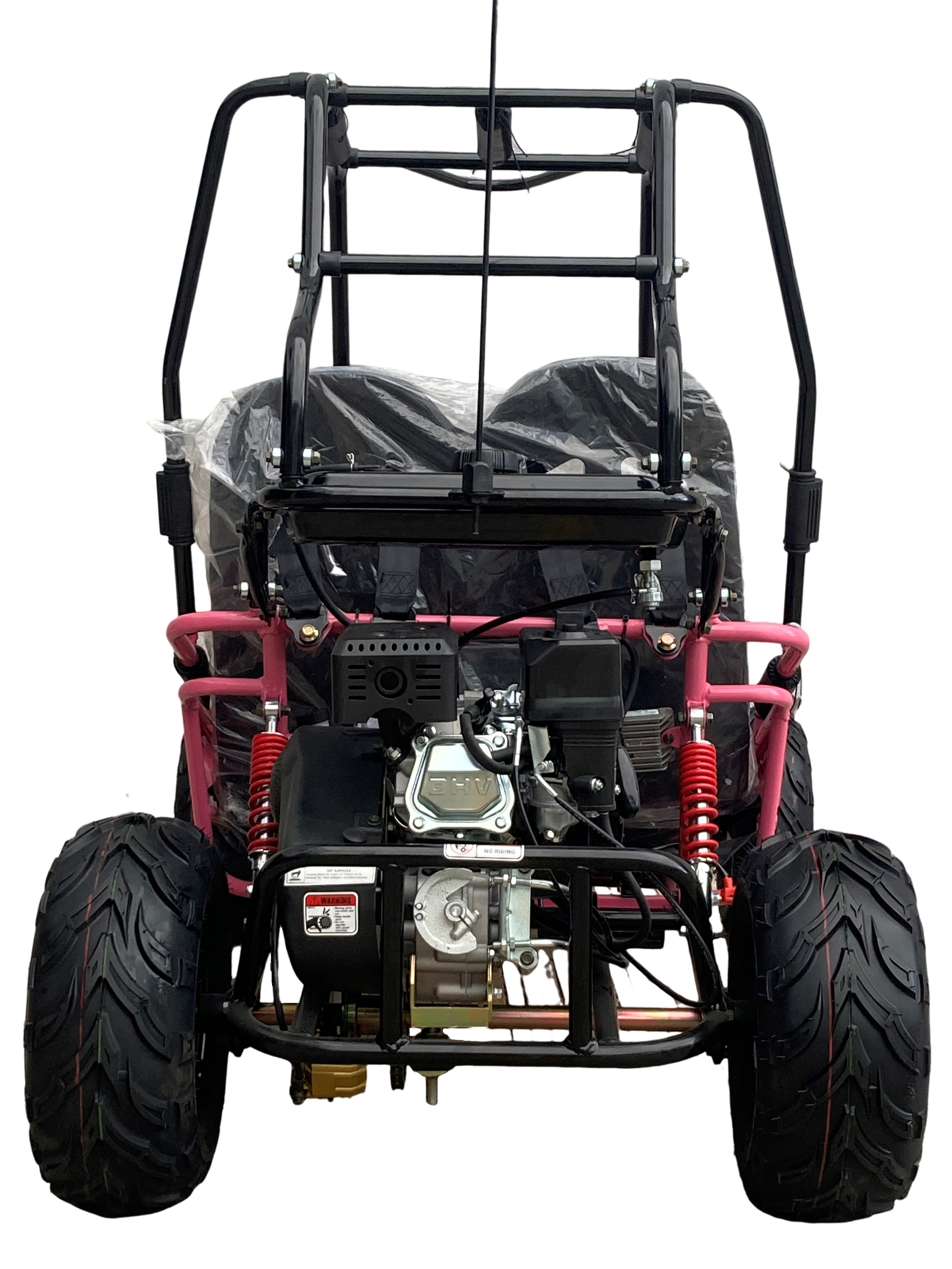

TrailMaster Mini XRX R+ Youth Go Kart

$1,849.00

Ignite the spirit of adventure in your child with the TrailMaster Mini XRX R+ Youth Go Kart, designed for thrilling outdoor experiences.

• Powerful 163cc engine for high performance and reliability.

• Safety-first design with sturdy roll cage and adjustable seat belts.

• Automatic transmission with reverse gear for easy control and maneuverability.

This go kart turns every ride into an adventure, giving your child the confidence and excitement of exploring the great outdoors safely. It's not just a go kart; it's the memory-maker of endless fun journeys.

FREE SHIPPING to your Home or Business anywhere in the continental U.S.

Now that’s the Right Way to do business! Keep Right!

Color:

Ignite the spirit of adventure in your child with the TrailMaster Mini XRX R+ Youth Go Kart, designed for thrilling outdoor experiences.

• Powerful 163cc engine for high performance and reliability.

• Safety-first design with sturdy roll cage and adjustable seat belts.

• Automatic transmission with reverse gear for easy control and maneuverability.

This go kart turns every ride into an adventure, giving your child the confidence and excitement of exploring the great outdoors safely. It's not just a go kart; it's the memory-maker of endless fun journeys.

FREE SHIPPING to your Home or Business anywhere in the continental U.S.

Now that’s the Right Way to do business! Keep Right!

SPECIFICATIONS

Engine Information

• Engine type: 4 stroke, single cylinder, air cooled

• Displacement: 163cc

• Max HP: 5.5hp/3600rpm

• Max torque: 8 lb ft/3600rpm

• Bore x stroke: 2.6 x 1.8 inches

• Max speed: 12.4mph

• Climbing ability: 12 degrees

• Ignition: C.D.I

• Starting system: Electric Start with Pull Start Backup

• Battery: 12V 9Ah

• Carburetor brand: JF (RX)

• Engine oil: SAE 15W -40

General Information

• Clutch: Automatic w/Reverse

• Driveline / Driving wheel: Chain / Dual wheel drive

• Suspension, F / R: Dual A-arm / Double Oil Damped Shock

• Brakes: Disc

• Tires, F / R: 145X70 - 6 / 16 X8 - 7

• Fuel capacity: 1.2 gal

• Weight, G.W. / N.W.: 280 / 232 lbs

• Max load: 300 lbs

Dimension Information

• Wheelbase: 42.6 inches

• OA L x W x H: 58.7x38.2x48.8 inches

• Height to seat: 13.6 inches

• Min ground clearance: 4.02 inches

• Pedal to seat back: 30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
